High Frequency (RF) Plastic Welder

  1. High Frequency (RF) Plastic Welder

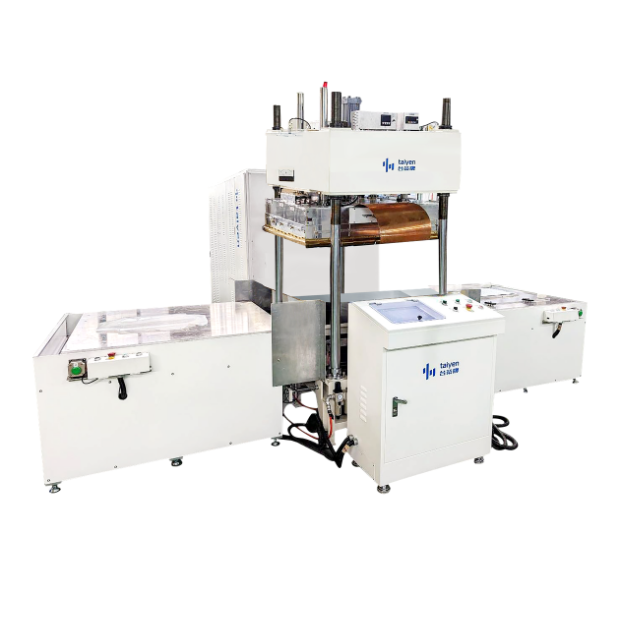

High Frequency Welder GH Series(15KW-50KW)

High Frequency Welder GH Series(15KW-50KW)

High Frequency (RF) Plastic Welding Machines are suitable for thermoplastic materials such as PVC, TPU, and PET, supporting welding, pressing, edge sealing, and forming processes. They are widely used for automotive components, medical products, packaging, sporting goods, and outdoor products. Machine configurations can be tailored to product materials, dimensions, and process requirements to support stable and efficient production.
/
DETAIL

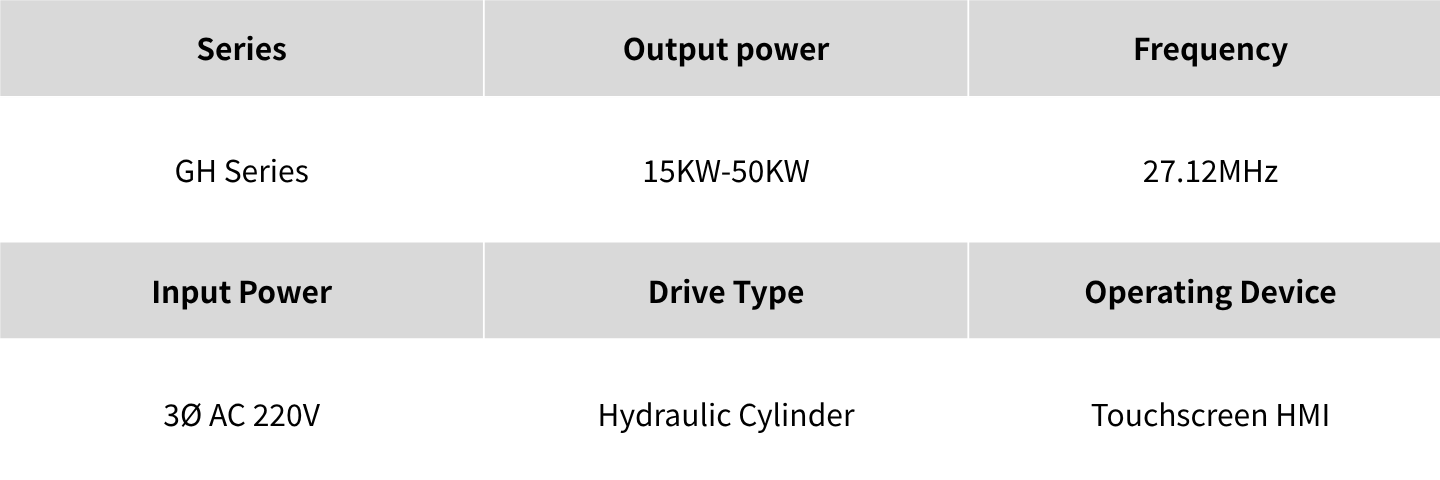

Specifications



Key Features



Material & Process Compatibility

Suitable for PVC, PU, TPU, and other thermoplastic materials compatible with High Frequency (RF) welding. Welding, cooling, delay, and holding times can be adjusted to meet different material and process requirements.

Operation & Parameter Management

Supports both manual and fully automatic operation modes. The touchscreen HMI enables process parameter setting, management, and multiple recipe storage, helping reduce product changeover and setup time.



Equipment Protection

Equipped with a high-sensitivity spark protection system, along with overcurrent, overvoltage, overload, and abnormal output power protection. Fault alerts help reduce the risk of damage to molds, workpieces, and equipment.

Operator Safety

Can be integrated with safety light curtains, two-hand controls, safety doors, and emergency stop devices to enhance machine operation safety and personnel protection.
